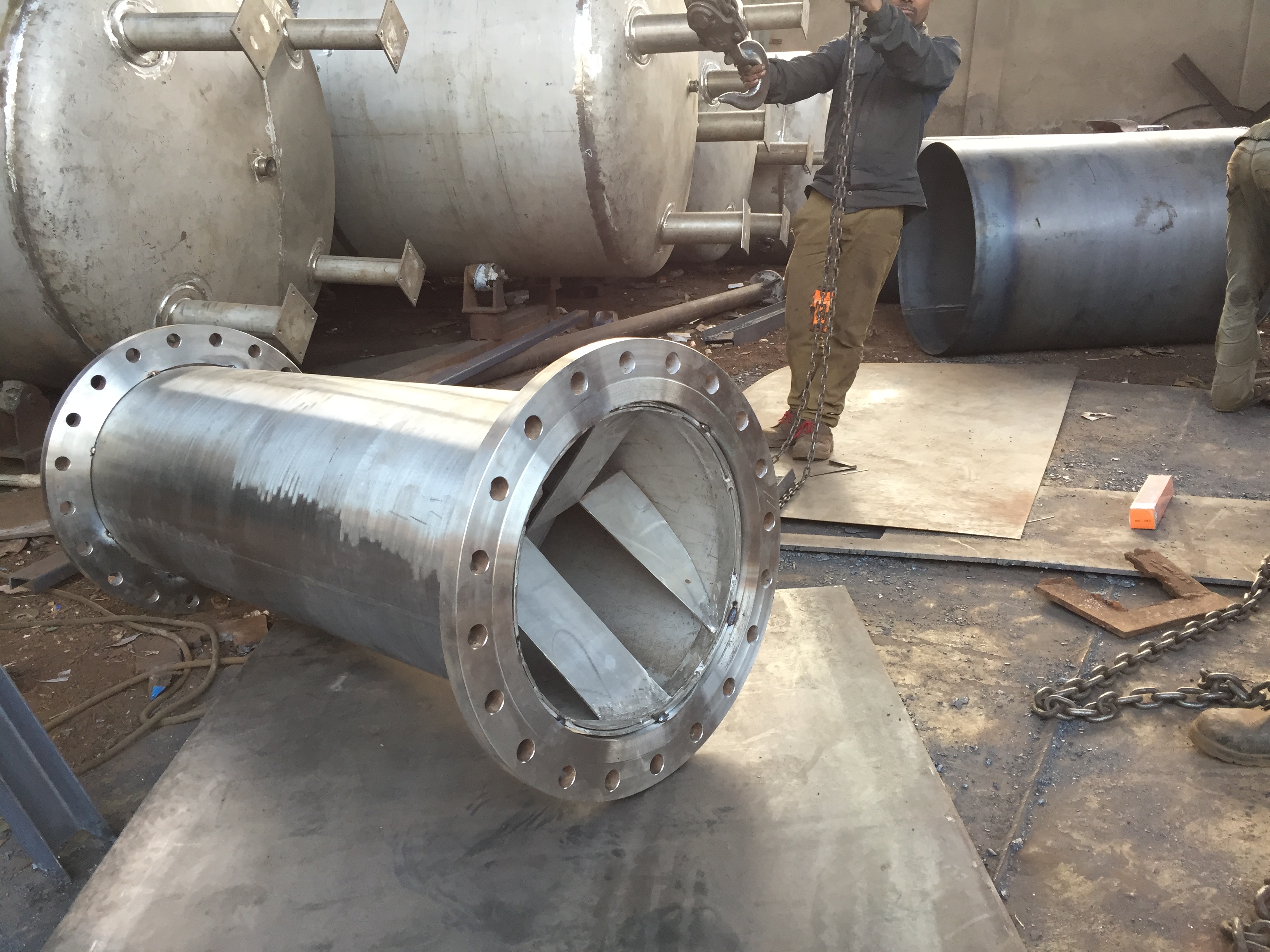

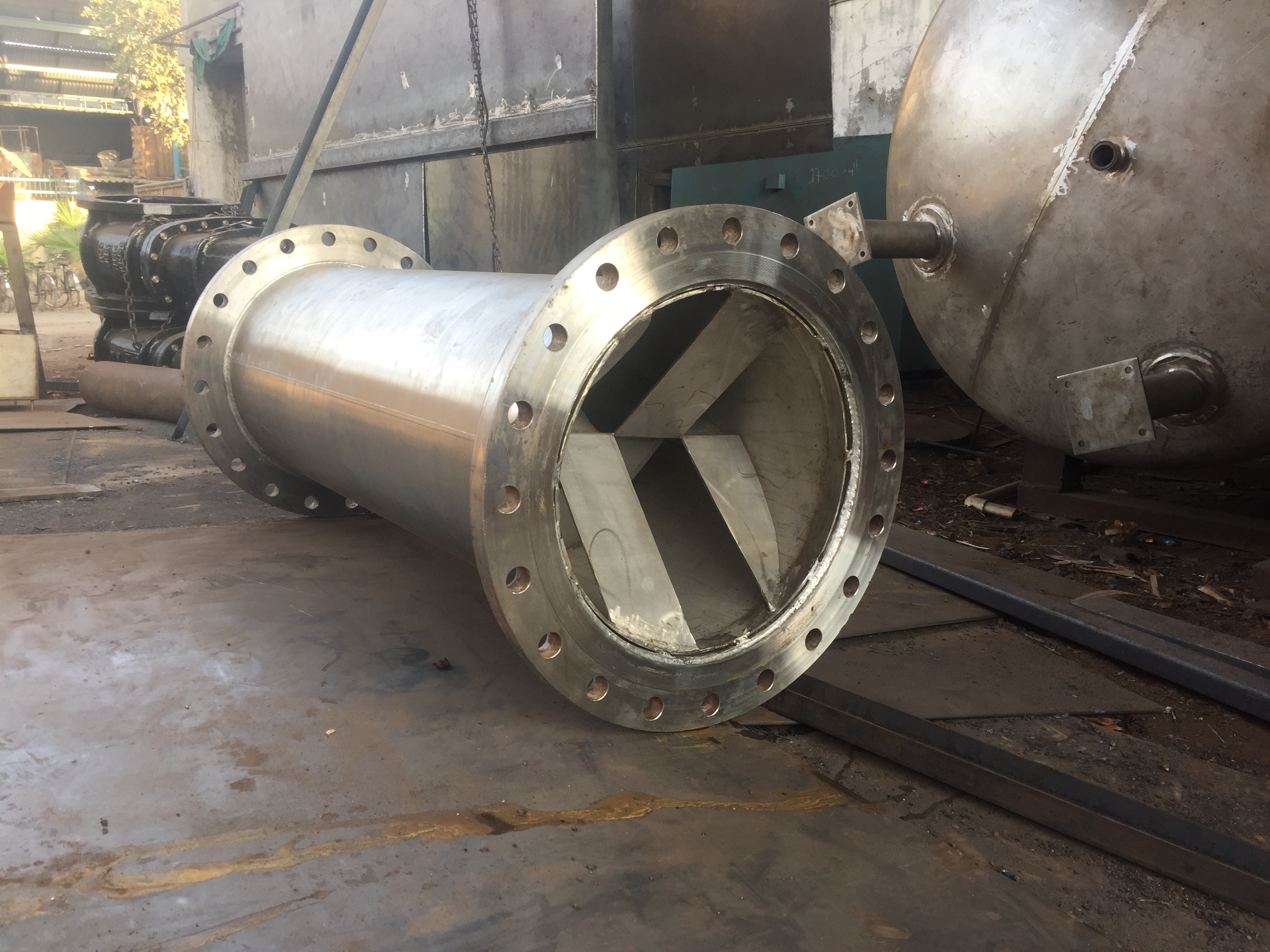

Static Mixer

Static Mixer

Efficient Inline Mixing Without Moving Parts

LD EngiTech LLP offers high-performance Static Mixers designed for continuous, energy-efficient mixing of liquids, gases, and multi-phase fluids. Our mixers deliver uniform blending with zero moving parts, ensuring reliability, low maintenance, and consistent process performance.

Applications

• Line Size: DN15 to DN1000
• Flow Range: 0.5 m³/hr to 1000 m³/hr
• Material of Construction (MOC): SS304 / SS316 / CS / PP / FRP/HDPE

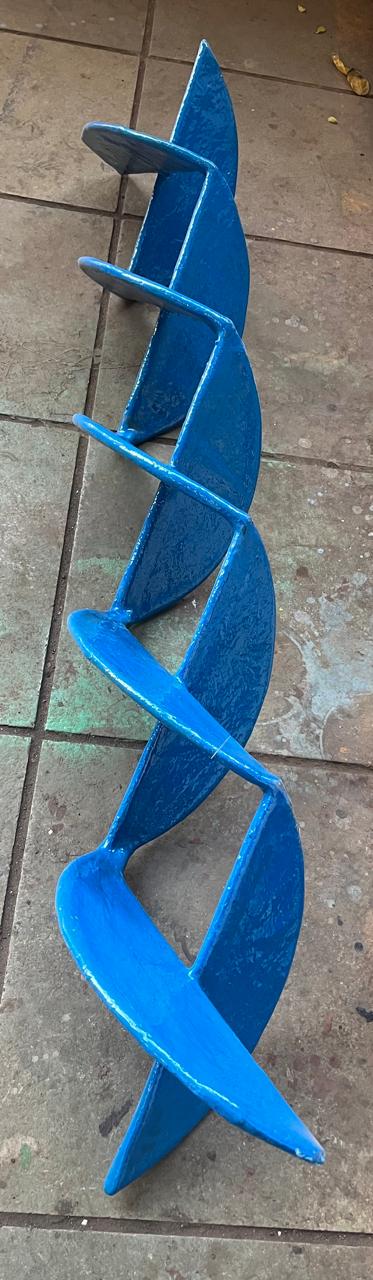

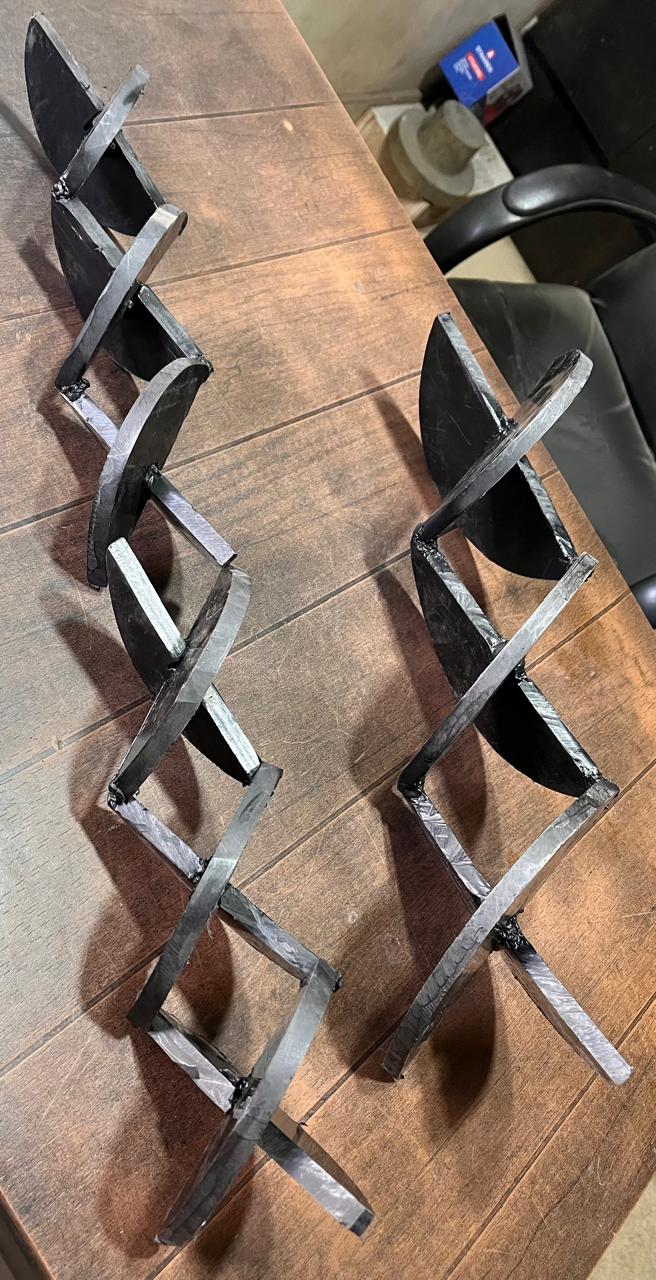

• Element Type: Helical / Tab Type / Custom Design
• Pressure Rating: Up to 25 Bar
• Temperature Range: Up to 250°C
• Connection: Flanged / Threaded / Welded
• Mixing Efficiency: Up to 95–99%

Key Features

• No moving parts zero maintenance
• High mixing efficiency with low pressure drop
• Compact design, easy installation
• Suitable for continuous operation
• Uniform mixing in short pipe length
• Custom-engineered for process requirements
